Supercharge Your Mastercam Workflow With X+
The essential X+ add-on designed by gmccs to streamline setup sheets, tool lists, and CNC productivity.
Why Machine Shops Choose X+?
Designed to streamline programming and eliminate redundant manual tasks.
Setup Sheets & Tool Lists
Generate highly detailed HTML and Excel setup sheets or tool lists directly from your Mastercam operations in seconds.
Reports for Sink-Erosion
Create fully customizable setup sheets for your die-sinking EDM machine based on the electrodes designed in your Mastercam part file.
Fixture Management
Allows users to define, manage, and integrate vices, chucks, clamps, and custom fixture components directly into the Mastercam environment.
FlowTo5Axis
Create 5-axis toolpaths to machine undercuts without necessarily having to invest in higher-end, full-featured multi-axis packages.
Other Features
Take advantage of other useful features to help optimize your workflow with Mastercam.

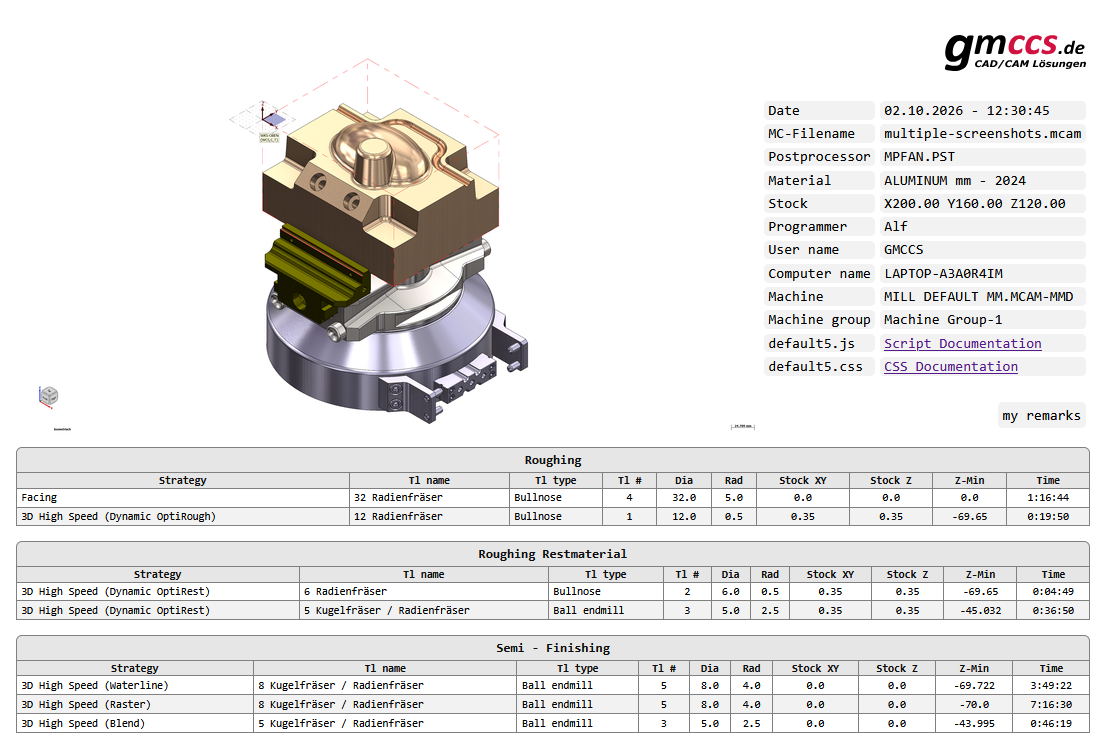

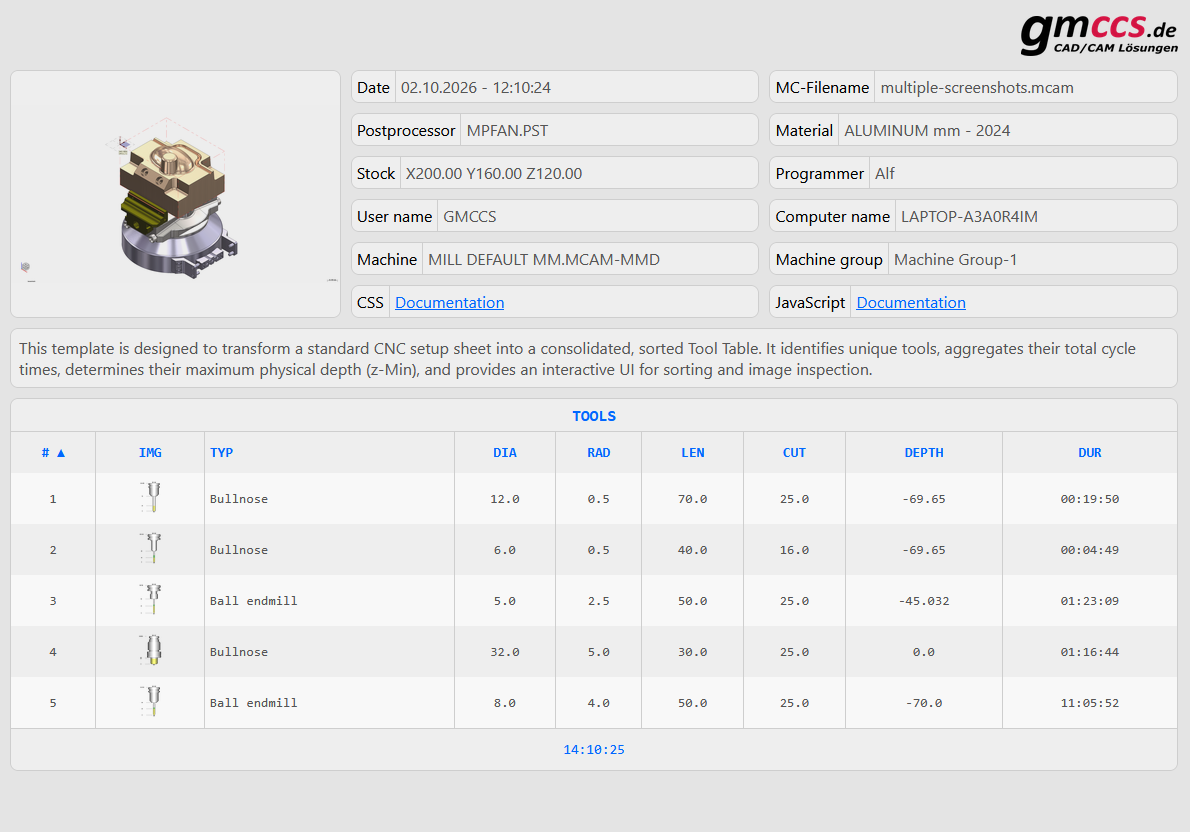

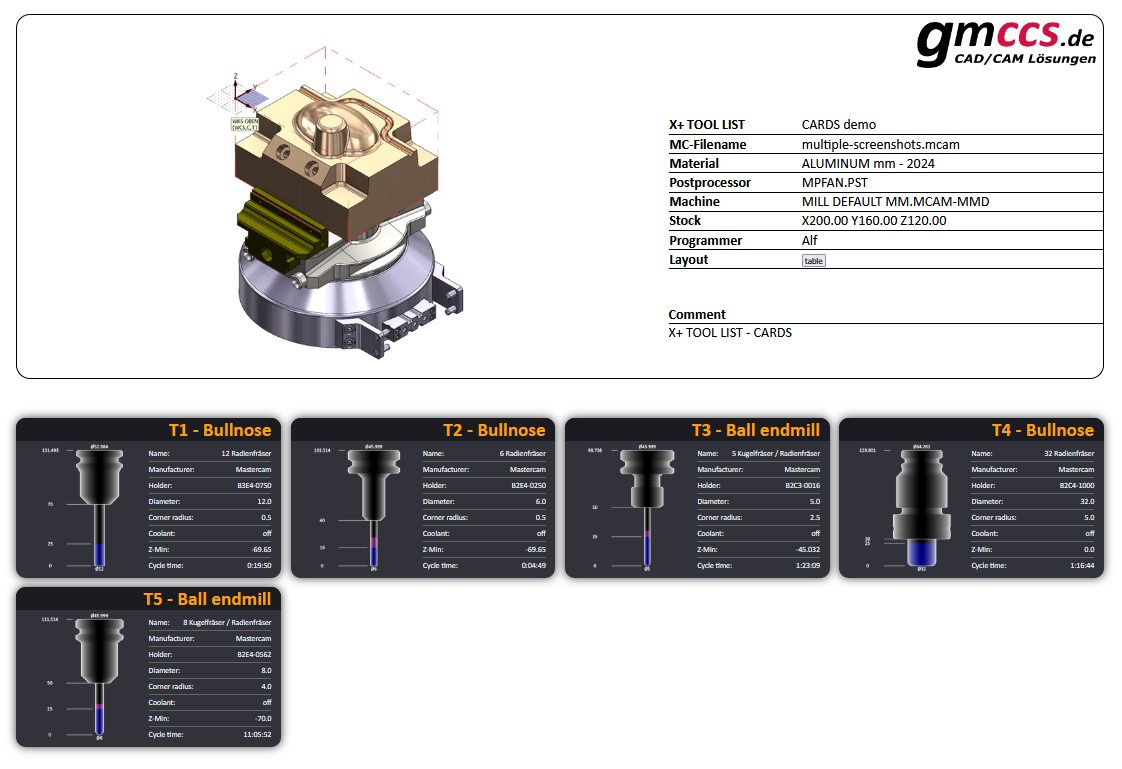

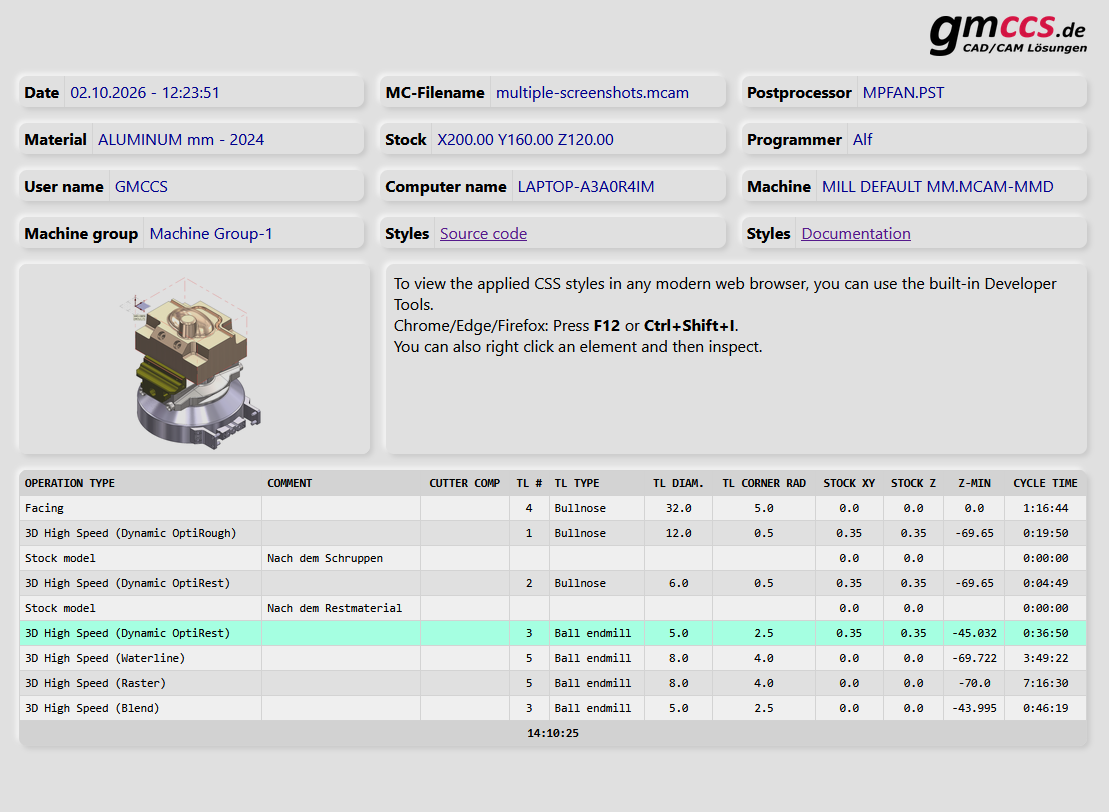

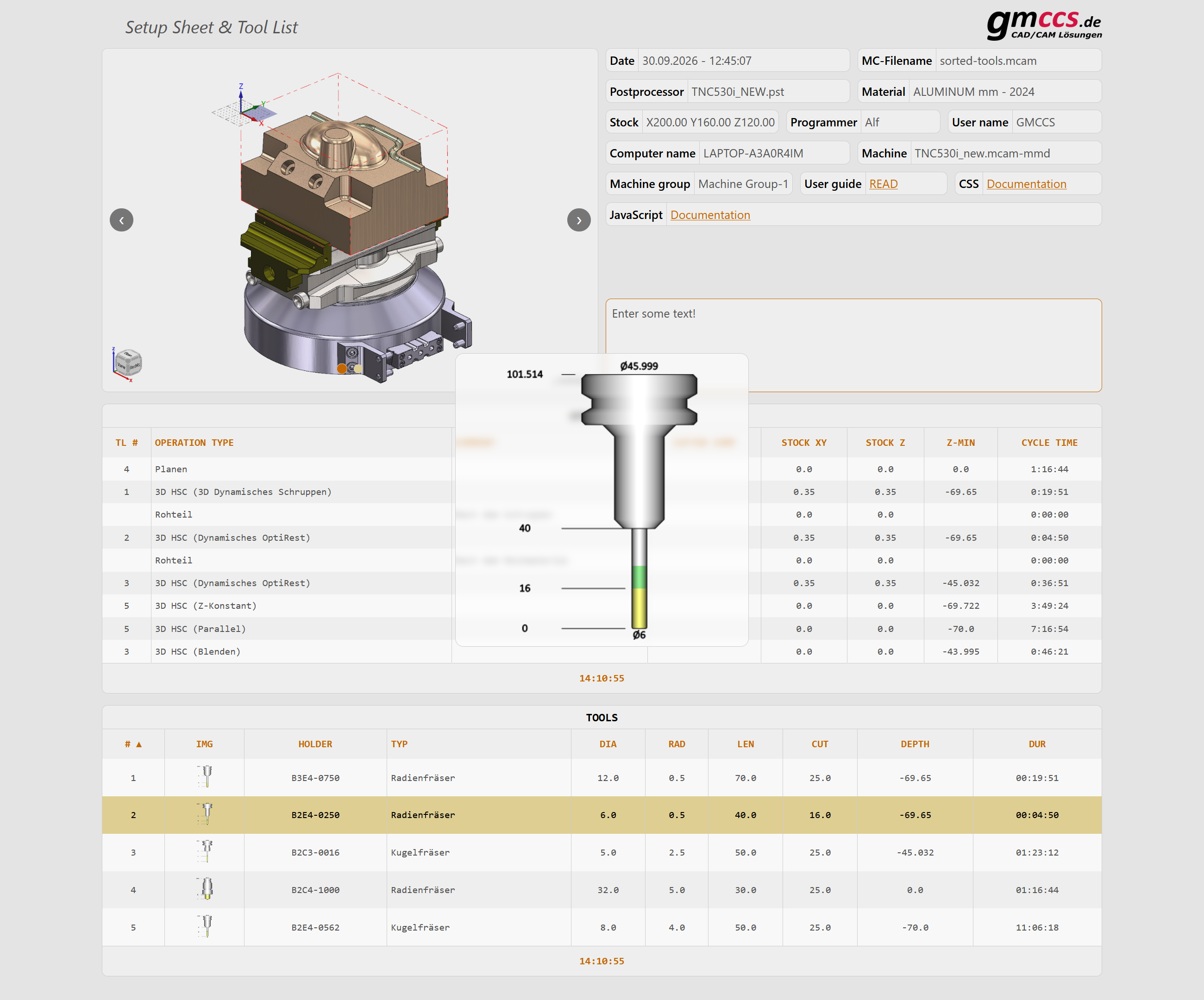

Create detailed setup sheets and tool lists for your shop floor in no time
Every click counts!

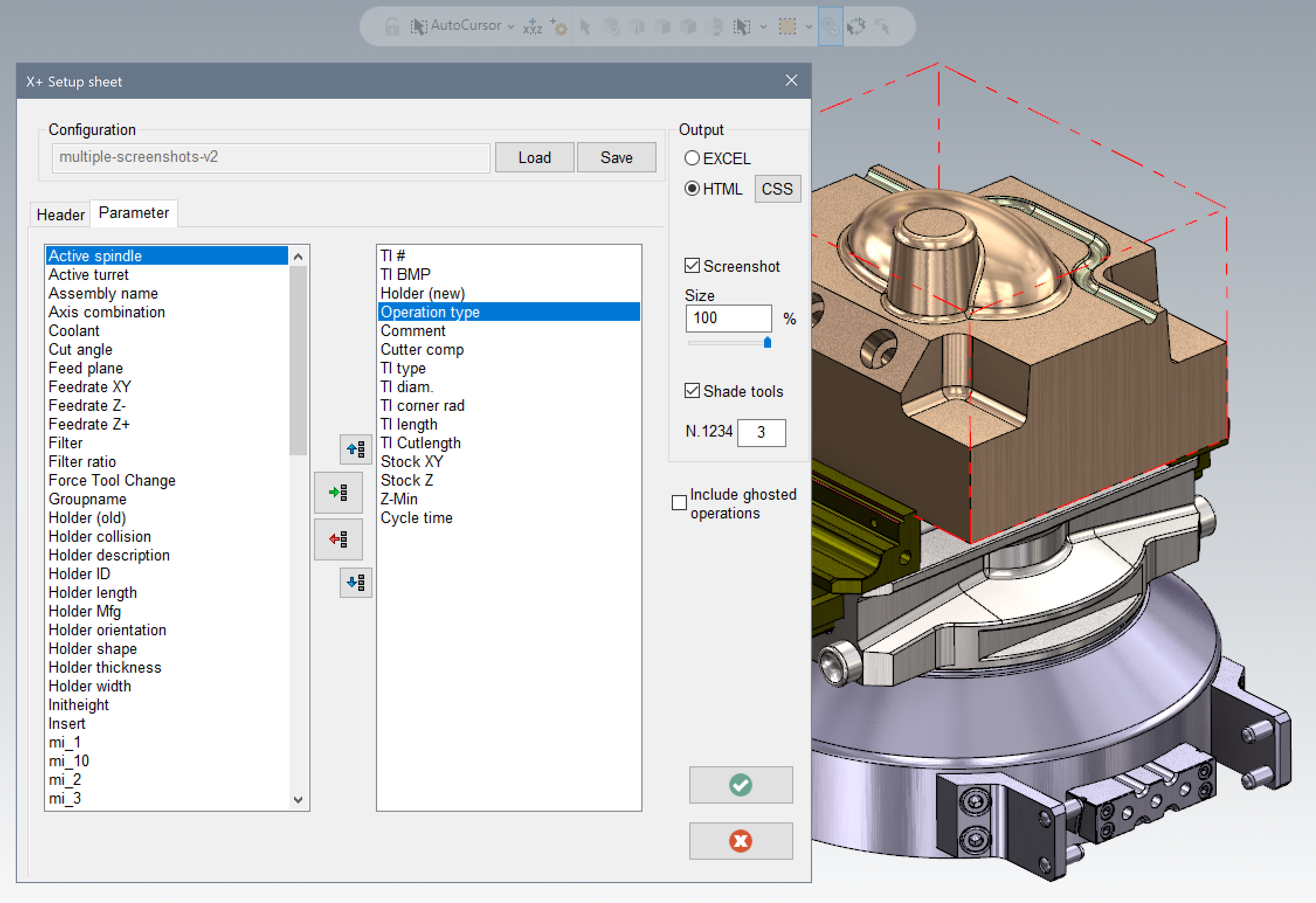

With X+, you can create fully customizable setup sheets or tool lists in no time at all, directly from your Mastercam operations.
- Fully customizable
- Easy to set up

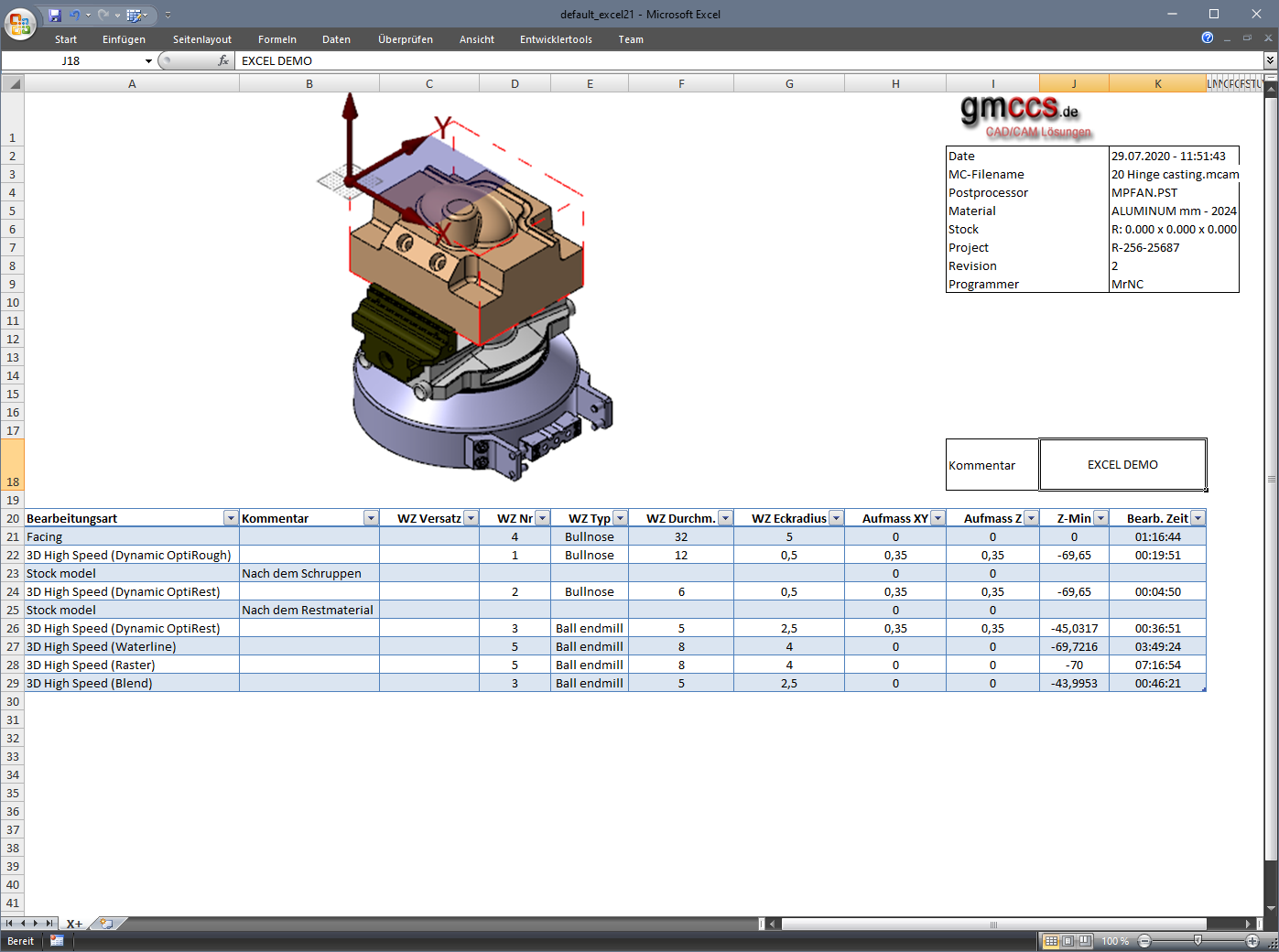

- Templates for HTML & Excel
- Create interactive reports using JavaScript or VBA
- Eliminate the need for repeated data entry
- Ultra-fast

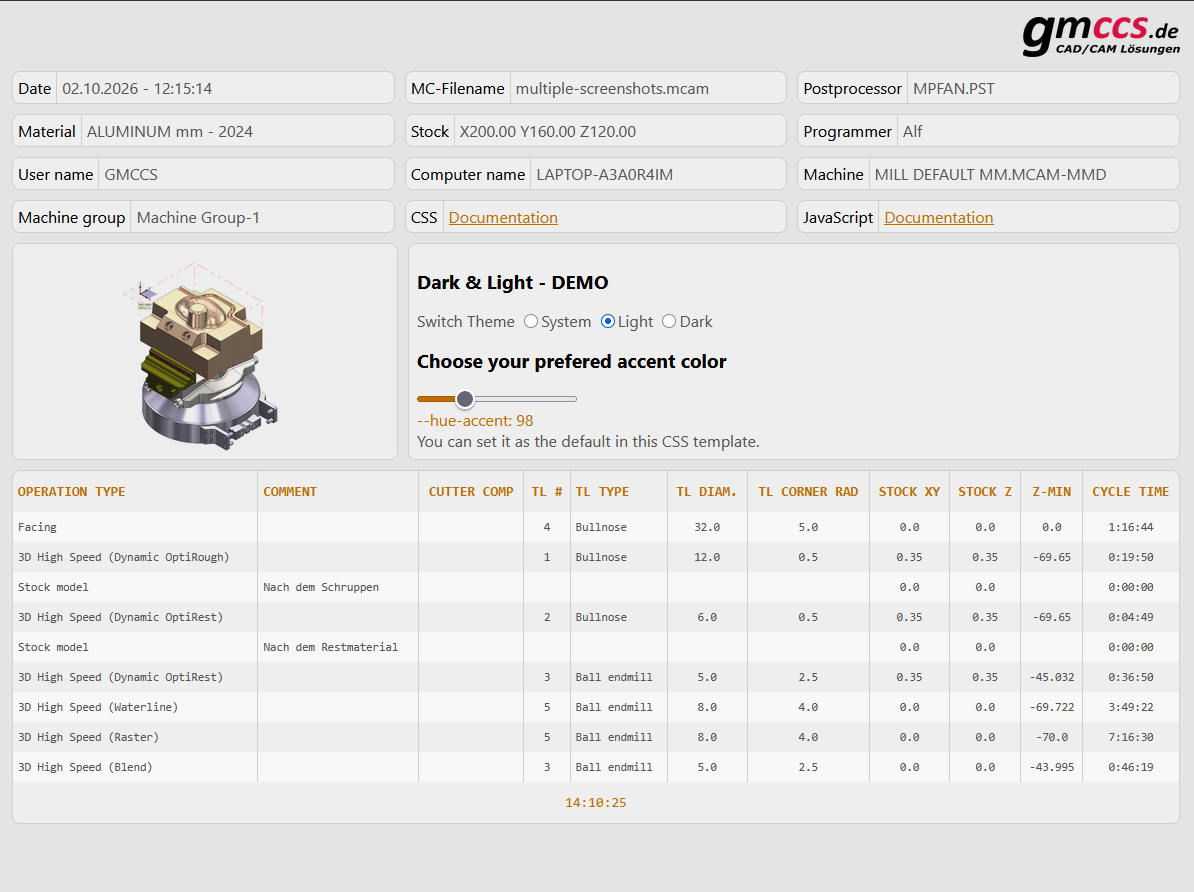

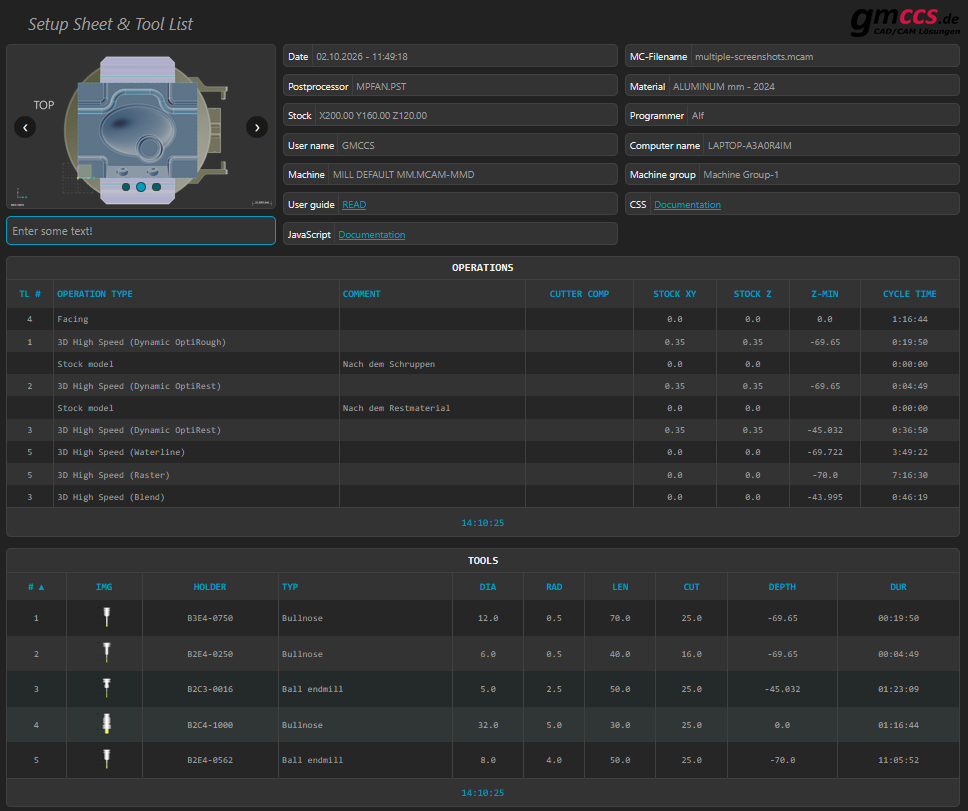

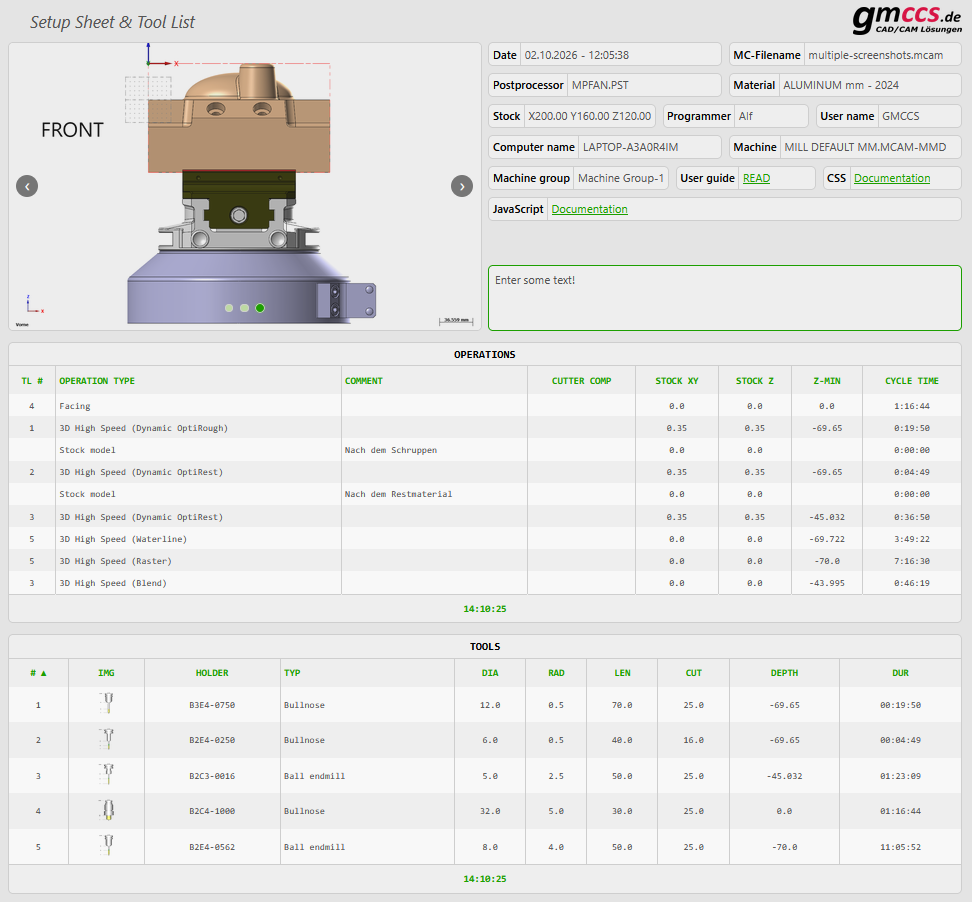

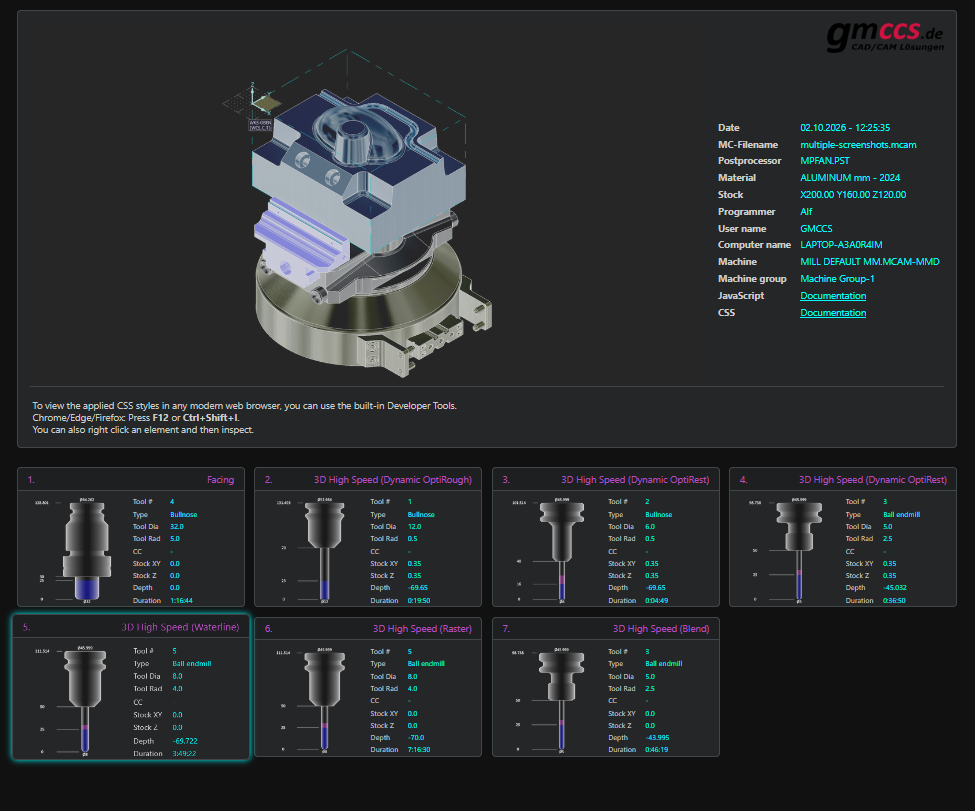

Many Pre-Installed Stock Templates
X+ includes a wide variety of stock templates for setup sheets and tool lists

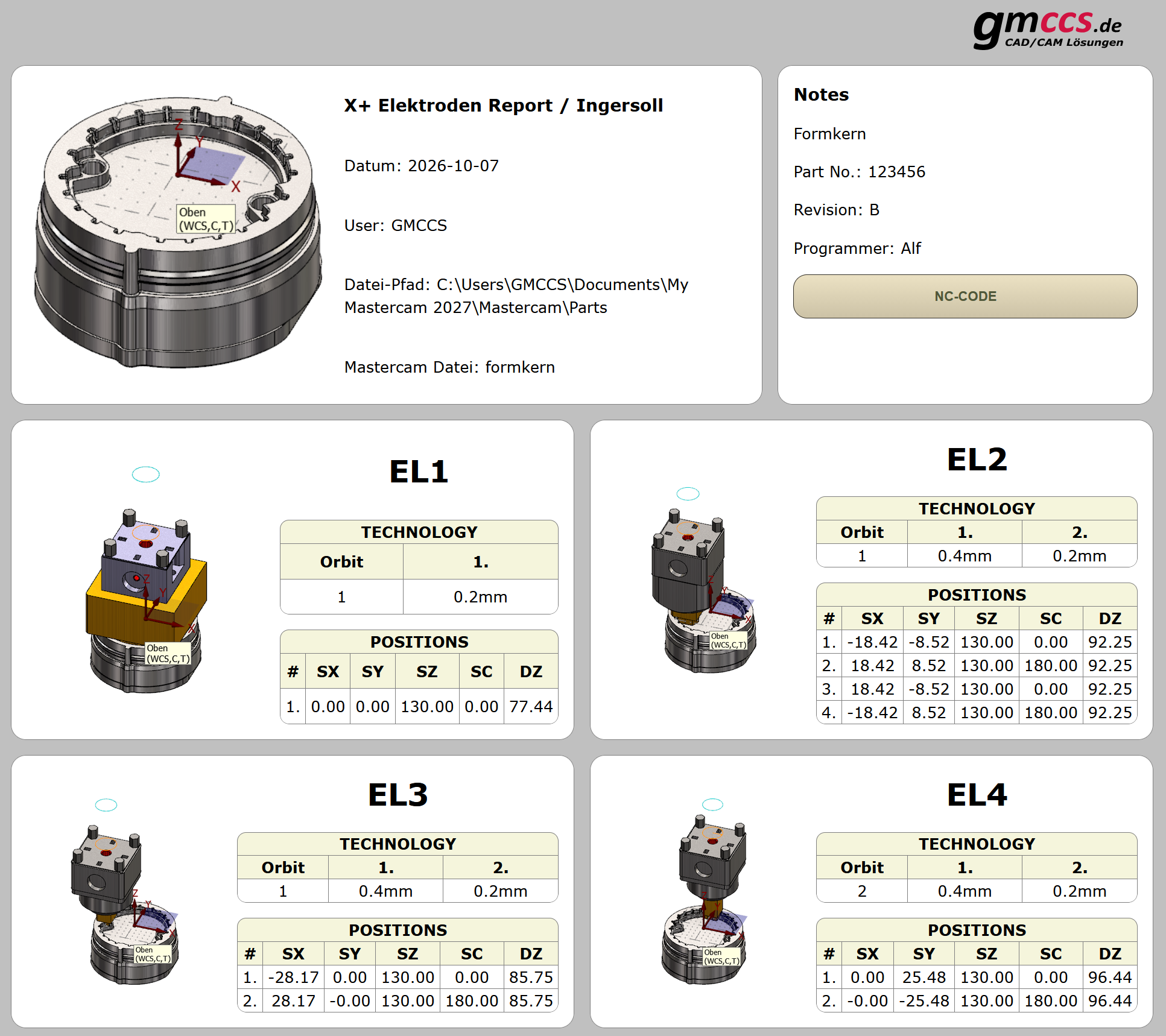

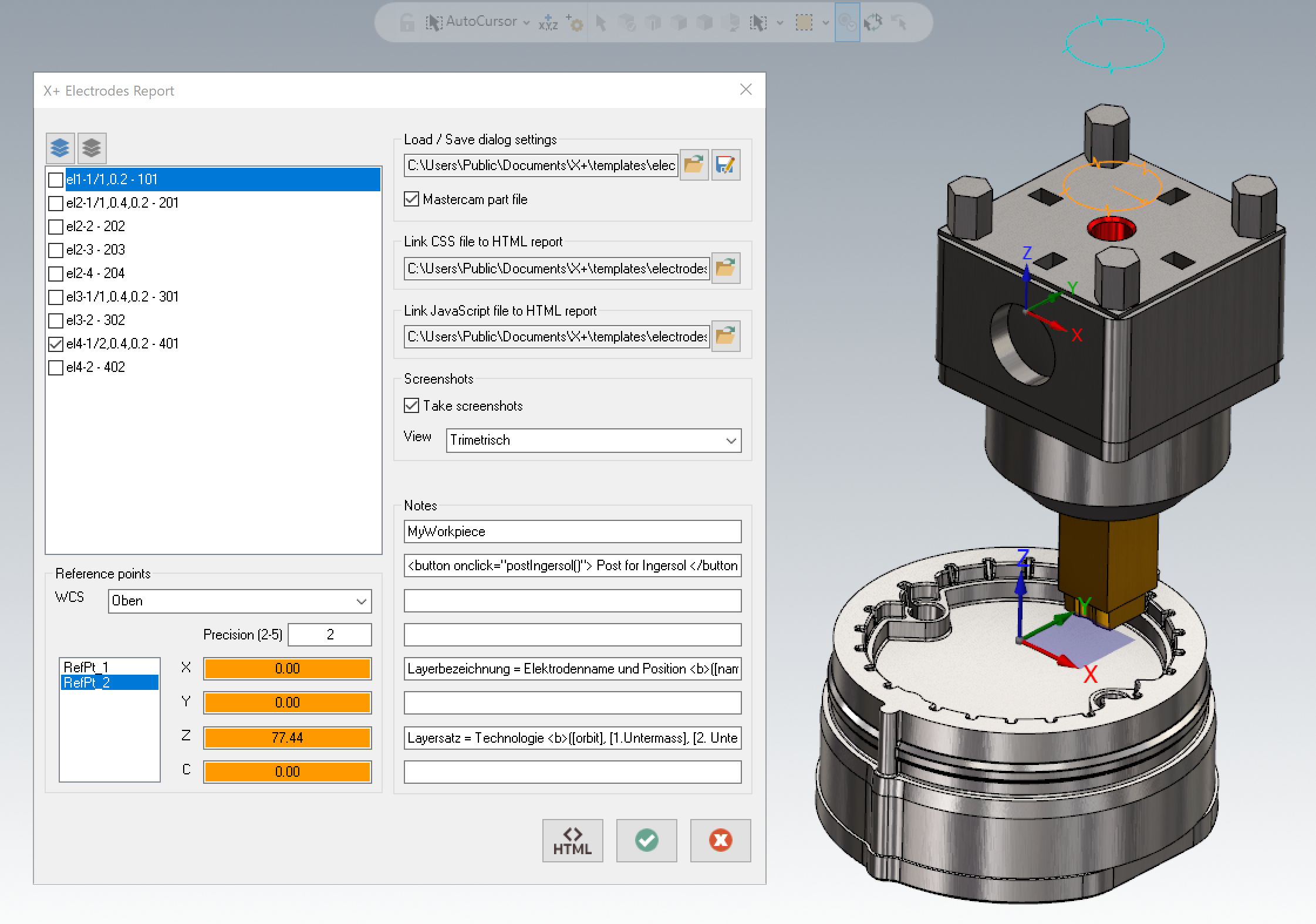

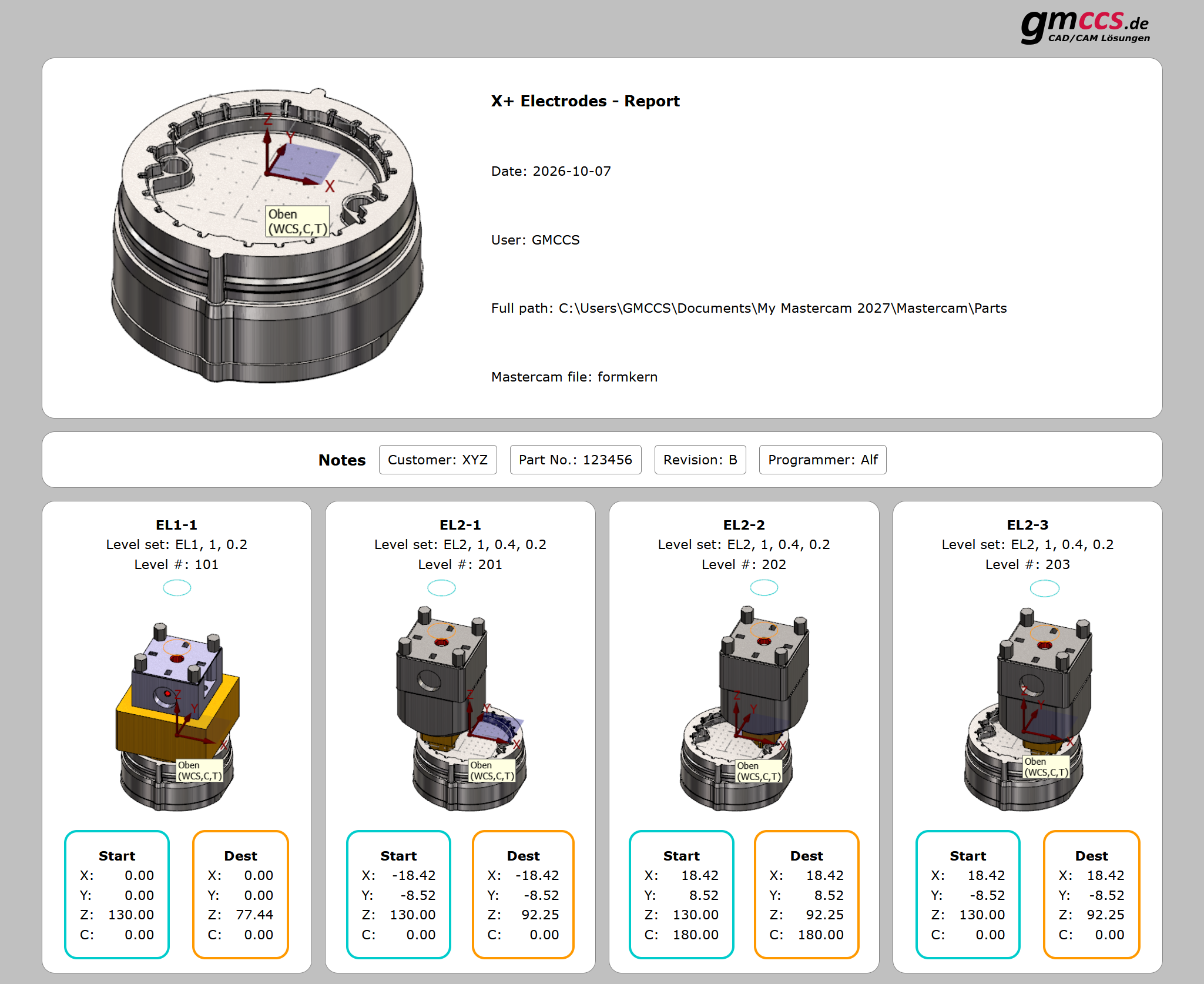

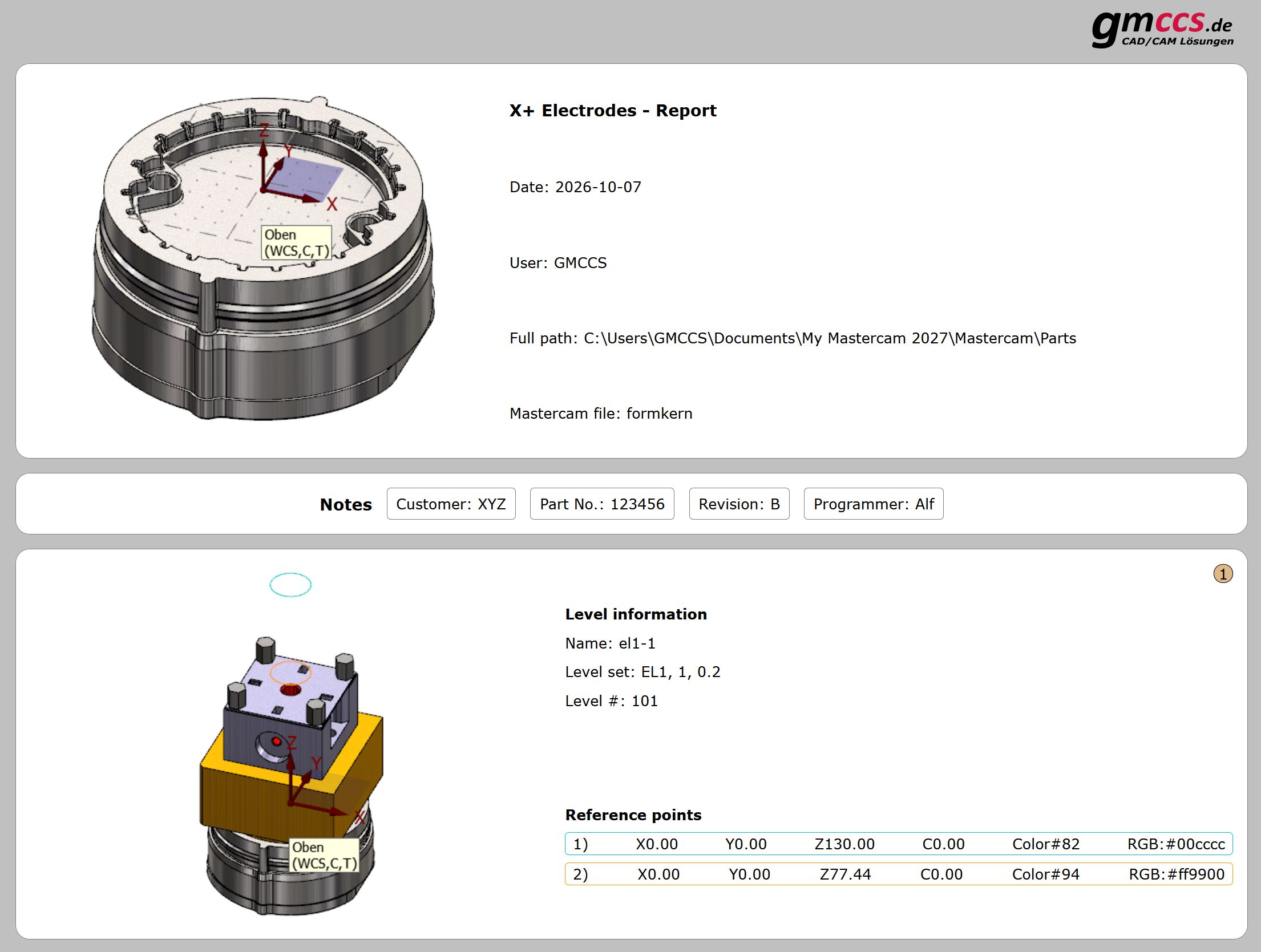

Create comprehensive HTML reports to document your electrodes with just a few clicks
Captures technical data, reference positions, and C-axis rotations, and automatically generates screenshots of each electrode—directly from your Mastercam part file.
JavaScript can be used to generate NC-Code for your die-sinking EDM machine.

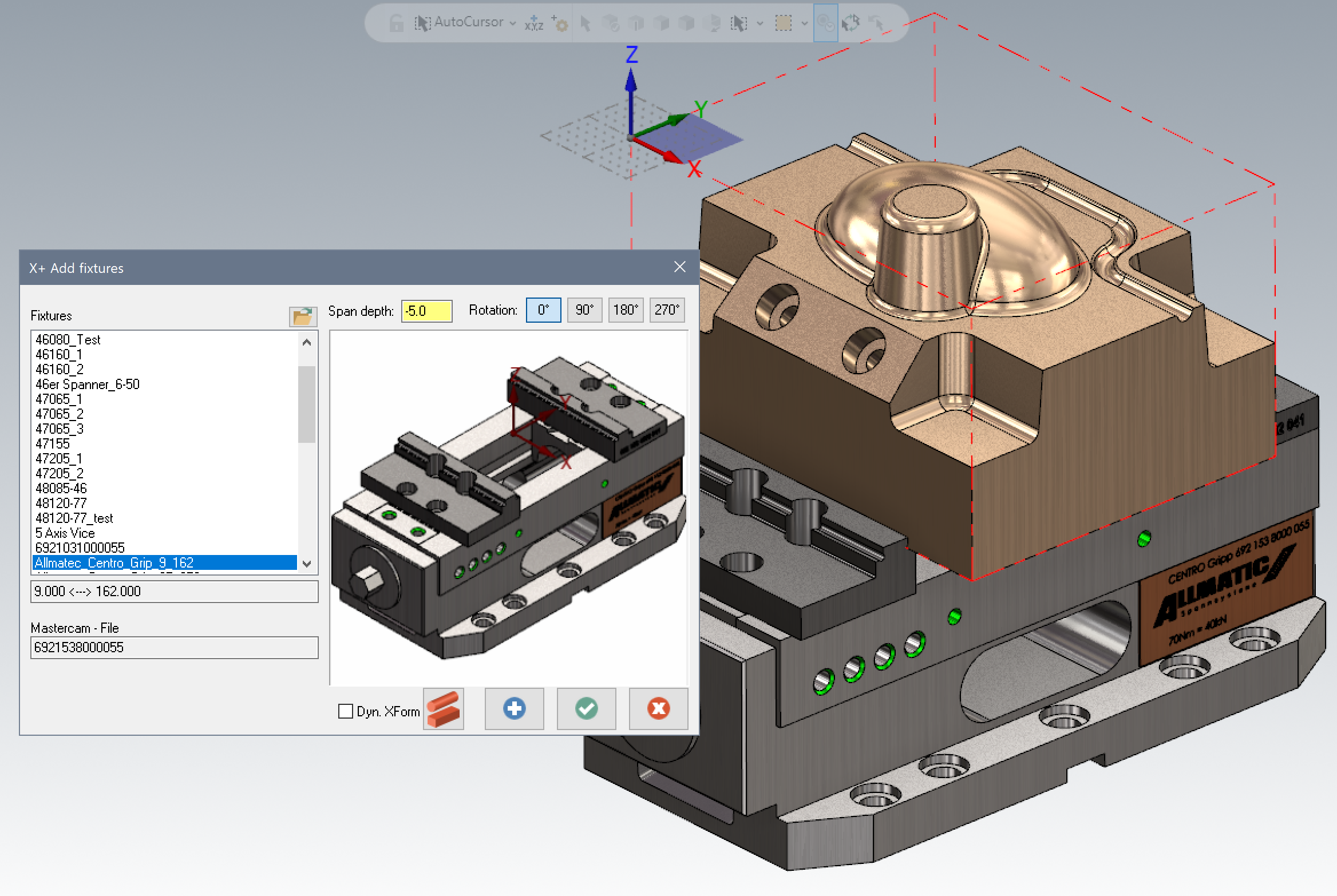

Merge and align your fixtures with a single click
Allows users to define, manage, and integrate fixtures, chucks, clamping devices, and custom fixture components directly within the Mastercam environment.
The fixture automatically aligns with your part model and positions itself accordingly when inserted via X+, saving you a lot of clicks.

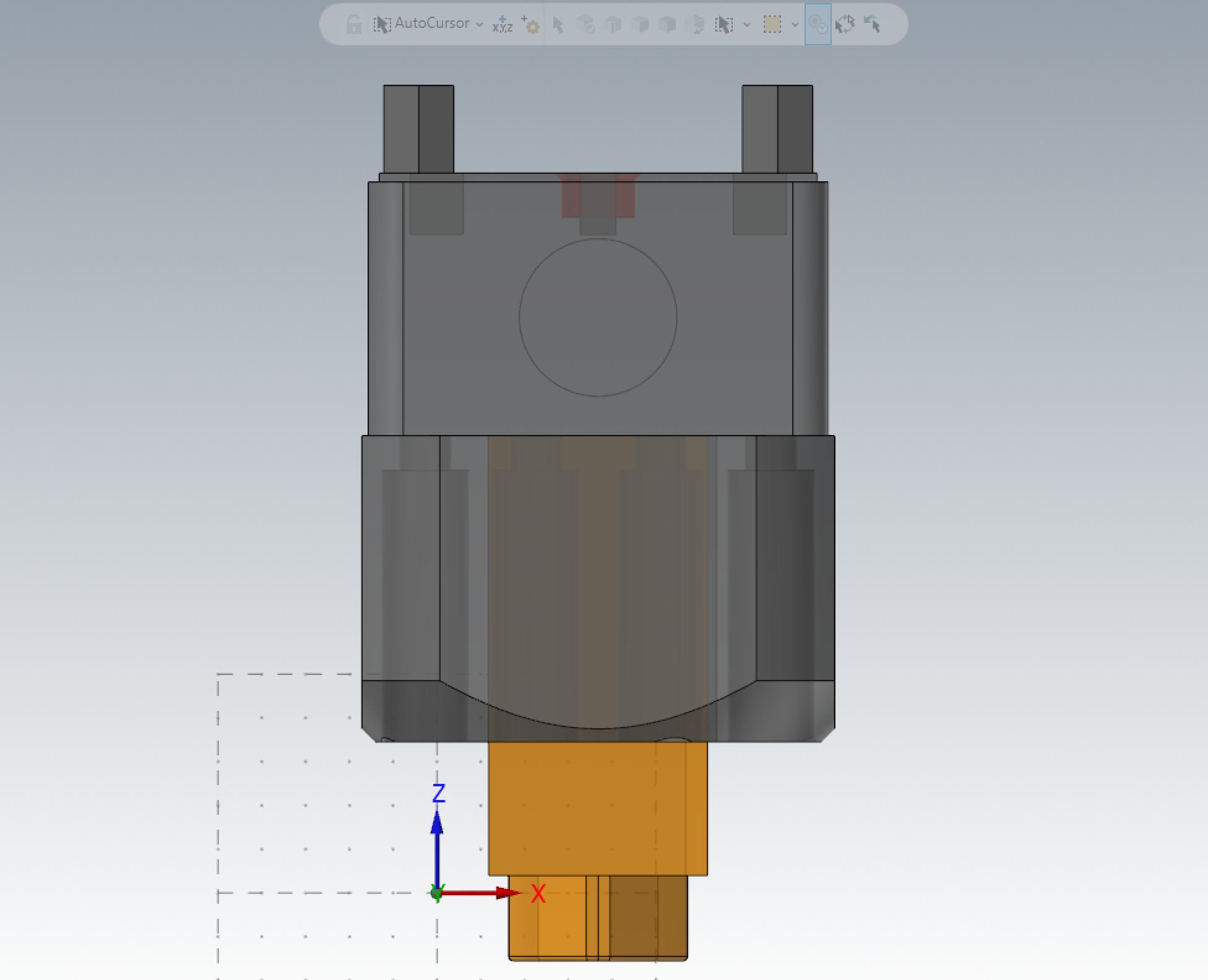

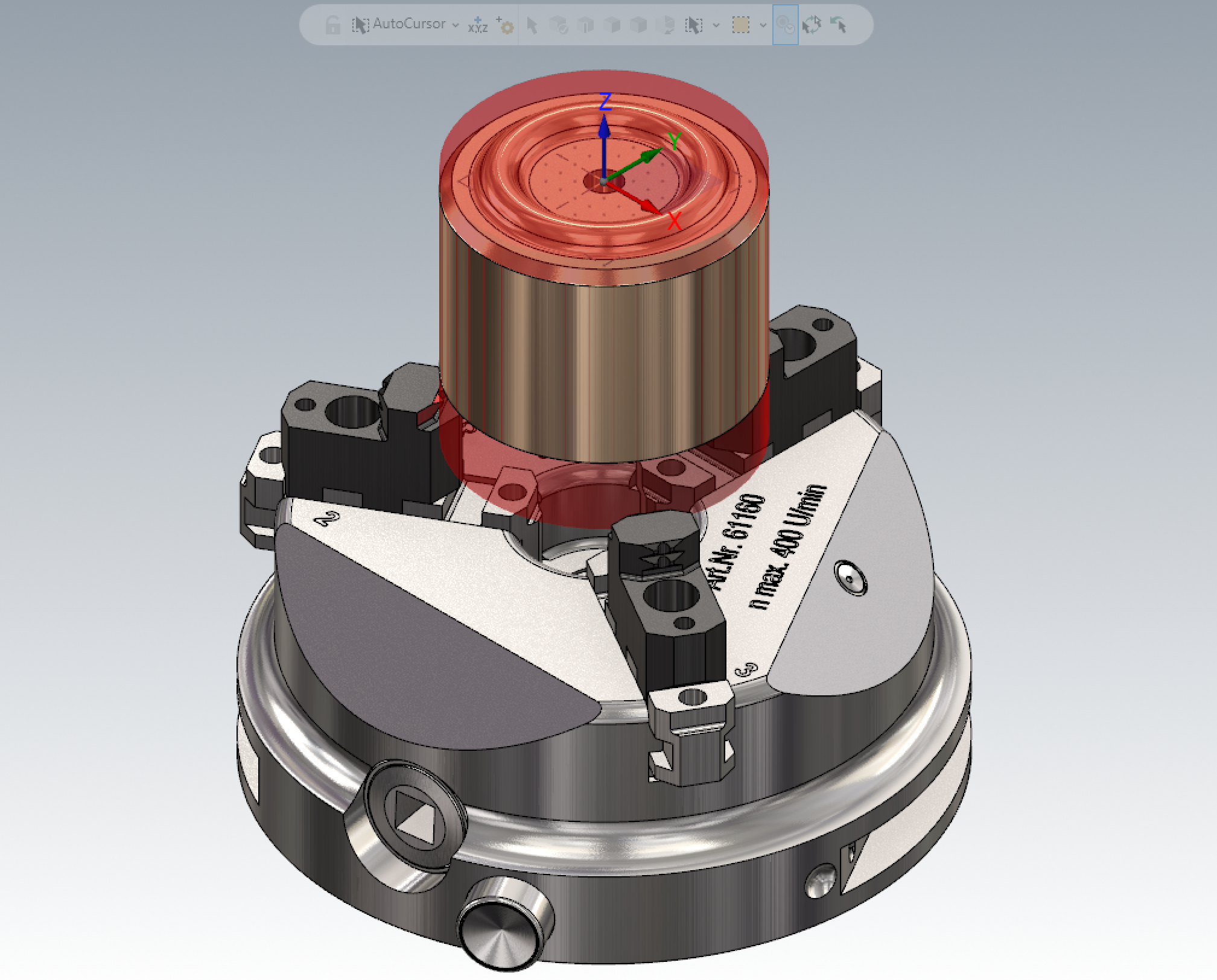

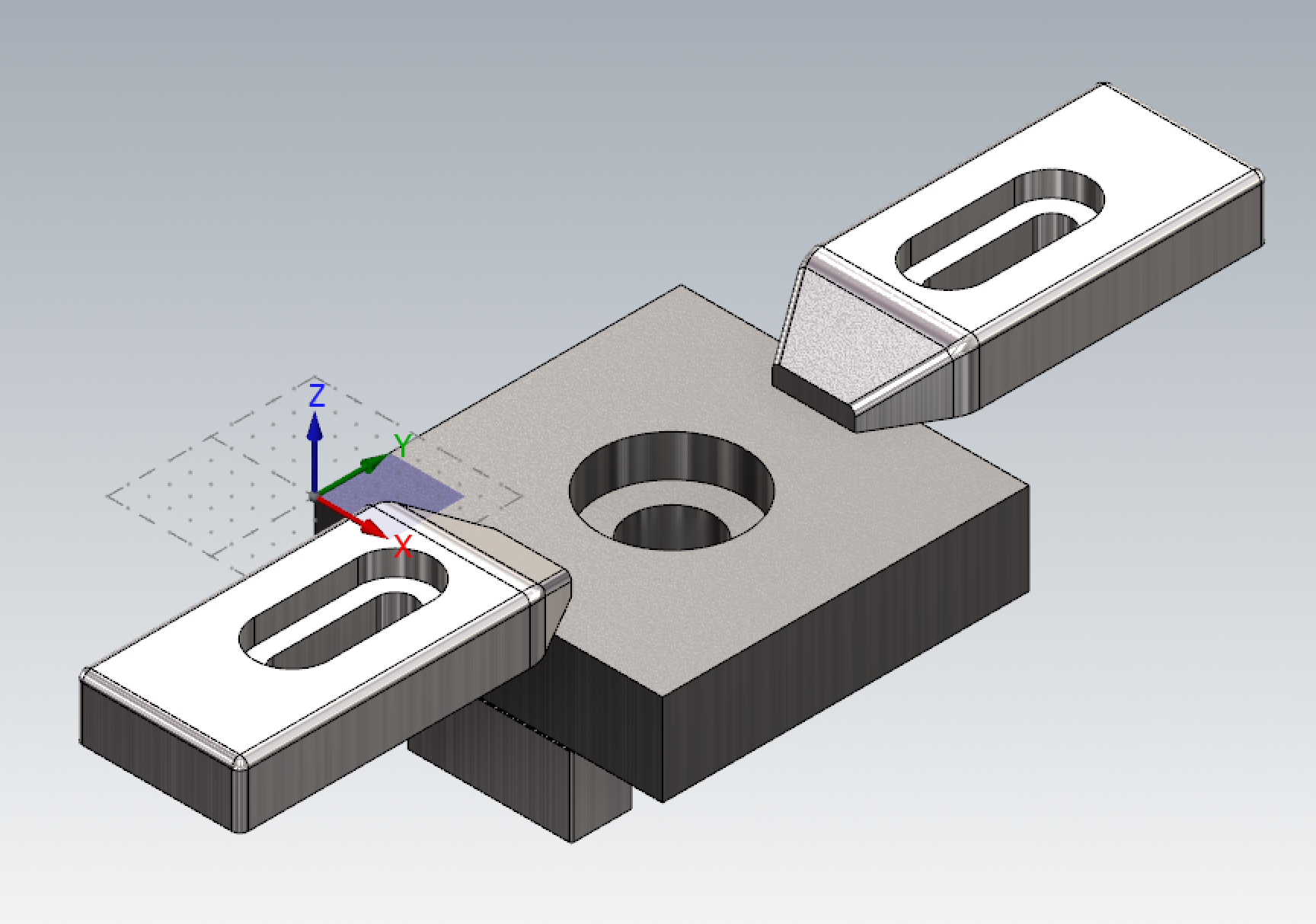

Manage all kinds of clamping devices
Merge and align with a single click
Fast, affordable, very easy to use

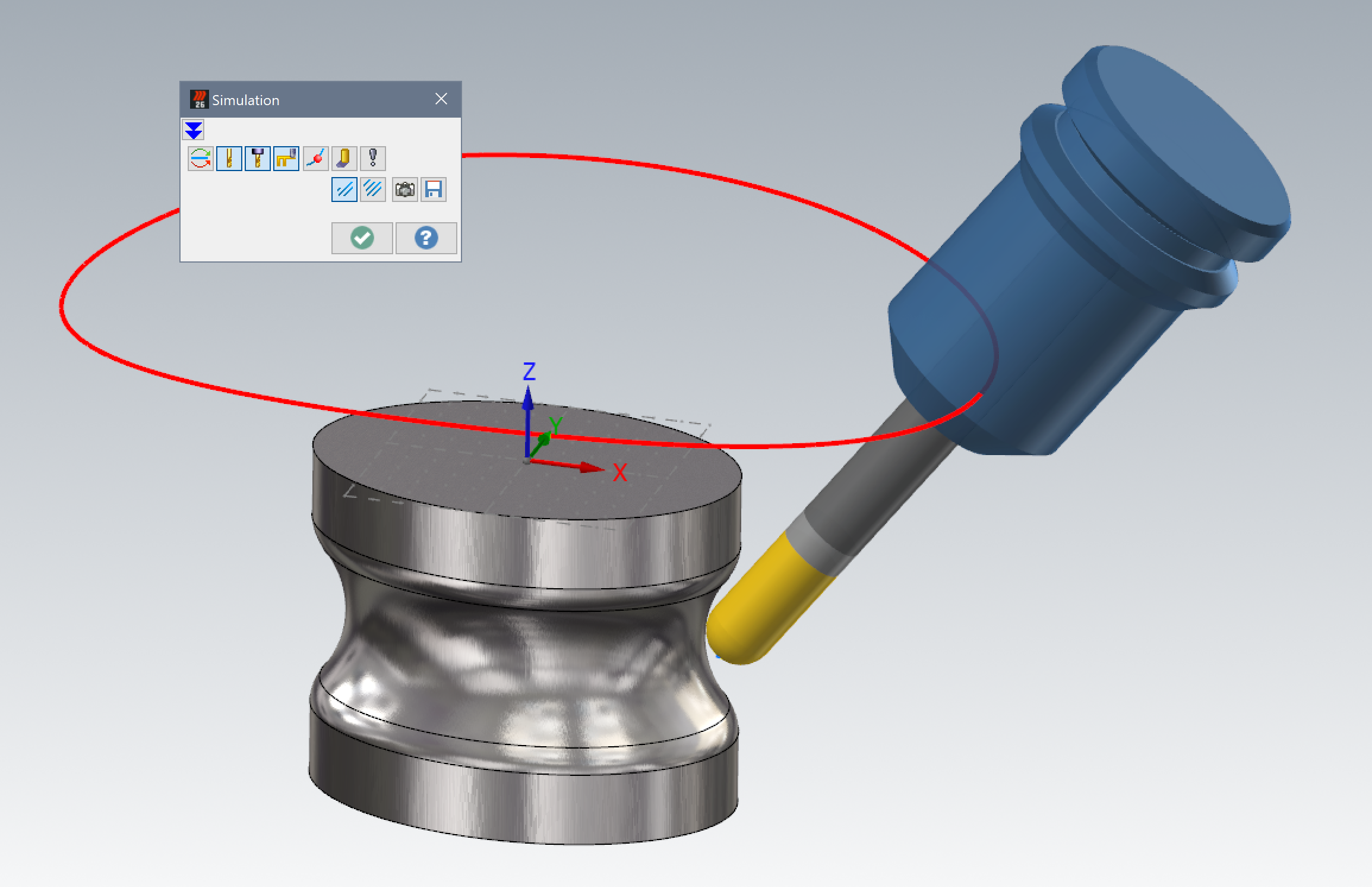

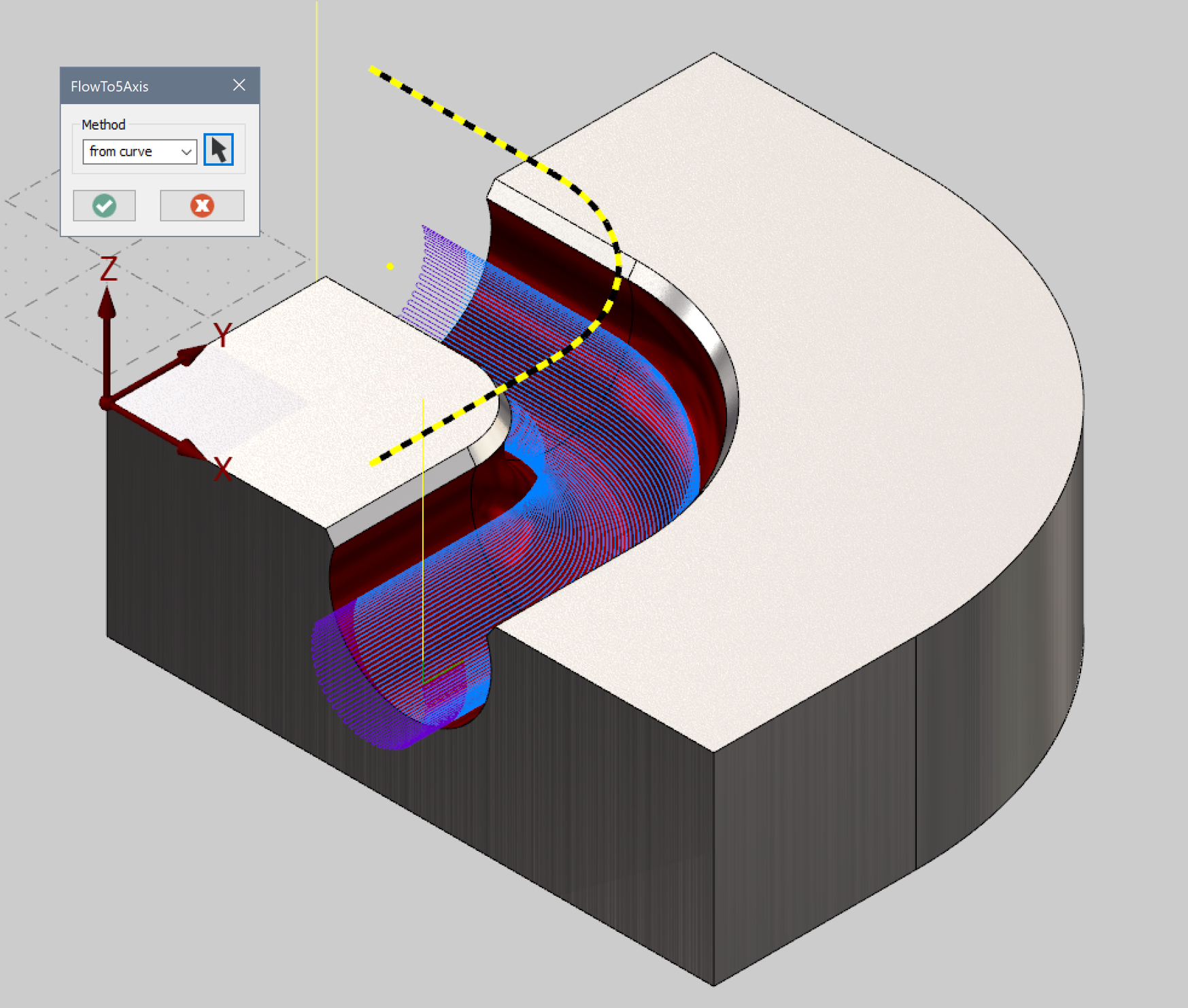

X+ FlowTo5Axis is an add-on tool for the Mastercam CAD/CAM software that lets users generate 5-axis toolpaths from standard 3-axis surface flowline toolpaths without needing Mastercam's expensive multi-axis license option.
Need to tilt your tool?

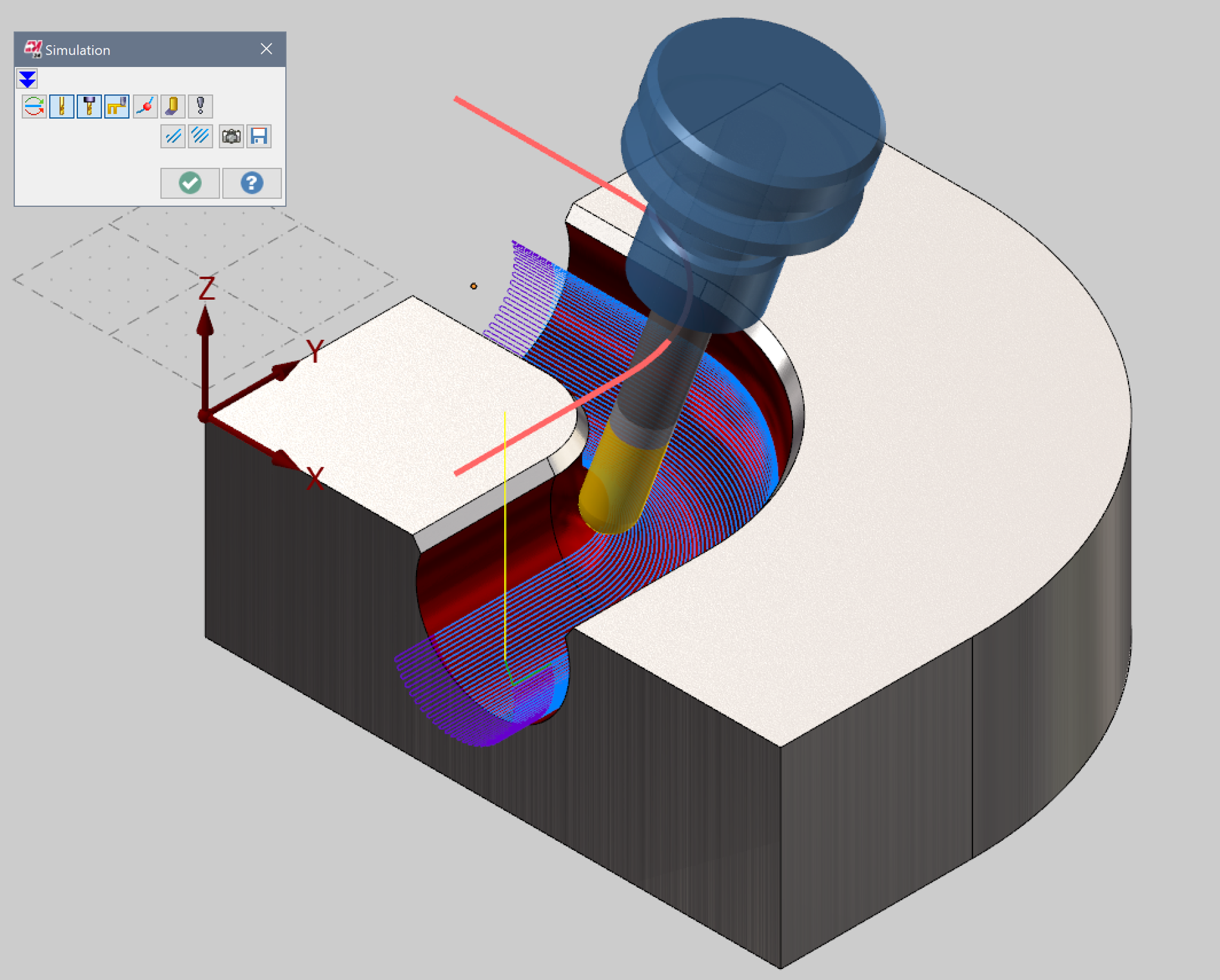

Use FlowTo5Axis to convert Mastercam's legacy Flowline toolpaths into 5-Axis toolpaths
Discover more X+ features that might meet your needs
-
Toolpath Sketcher
Can be used for face milling irregular shapes
-
X+ Screenshots
Take print-friendly screenshots (white background)
-
Holder Utility
Create a holder from axis and profile geometry
-
NCI Renaming Utility
Rename selected machining operations all at once based on predefined rules
-
Hirth Utility
Create perfect aligned tool planes for machines with Hirth-toothed machine axes
-
SVG Import
Import SVG (Scalable Vector Graphics) images
